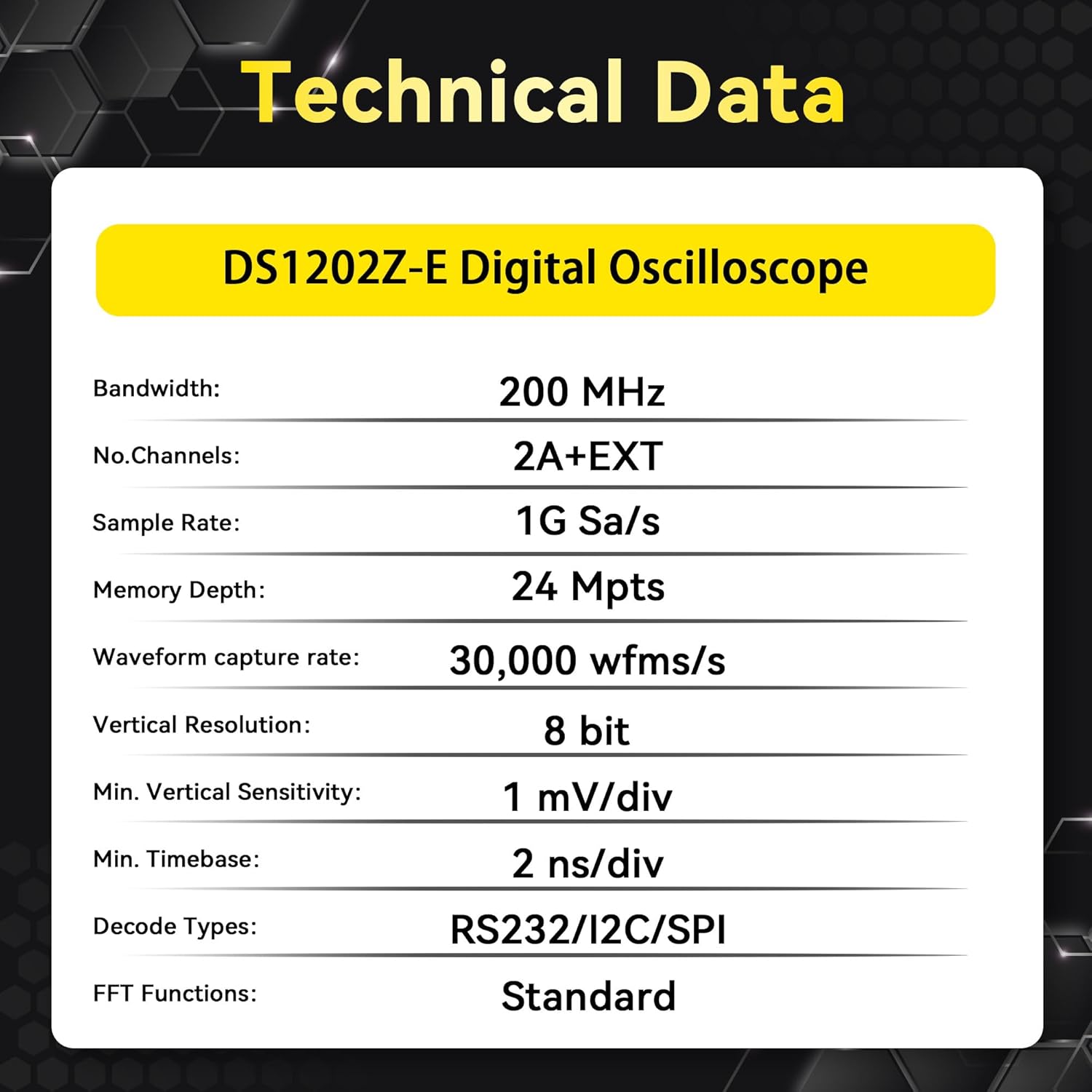

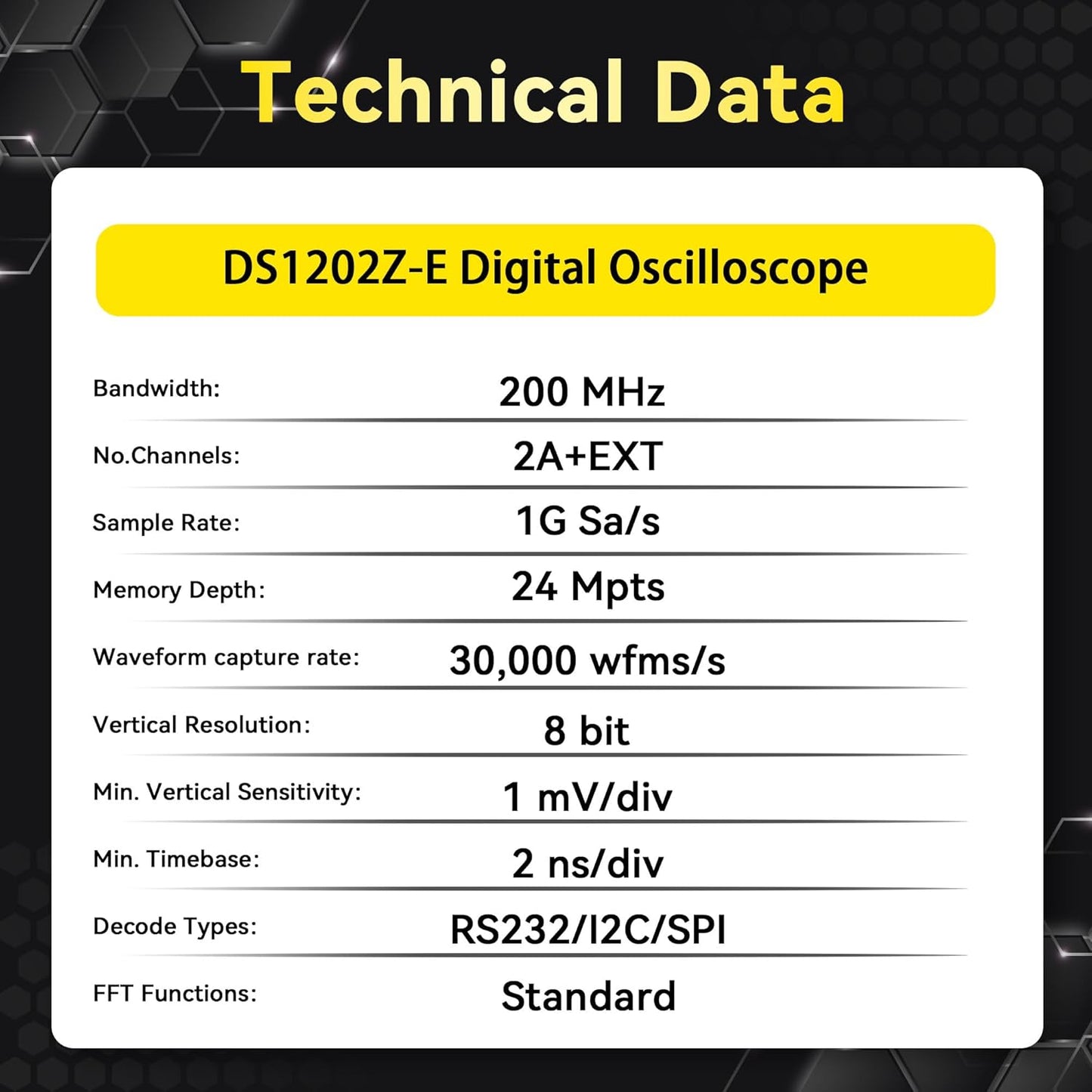

• Analog channel bandwidth: 200 MHz (DS1202Z-E): 100 MHz (DS1102Z-E)
• 2 analog channels
• Real-time sample rate up to 1 GSa/s
• Memory depth up to 24 Mpts
• Up to 30,000 wfms/s waveform capture rate
• Up to 60,000 frames hardware real-time waveform recording and playback functions
• Innovative "UltraVision" technology
• Various trigger and bus decoding functions
• Low noise floor, vertical scale range: 500 uV/div to 10 V/div

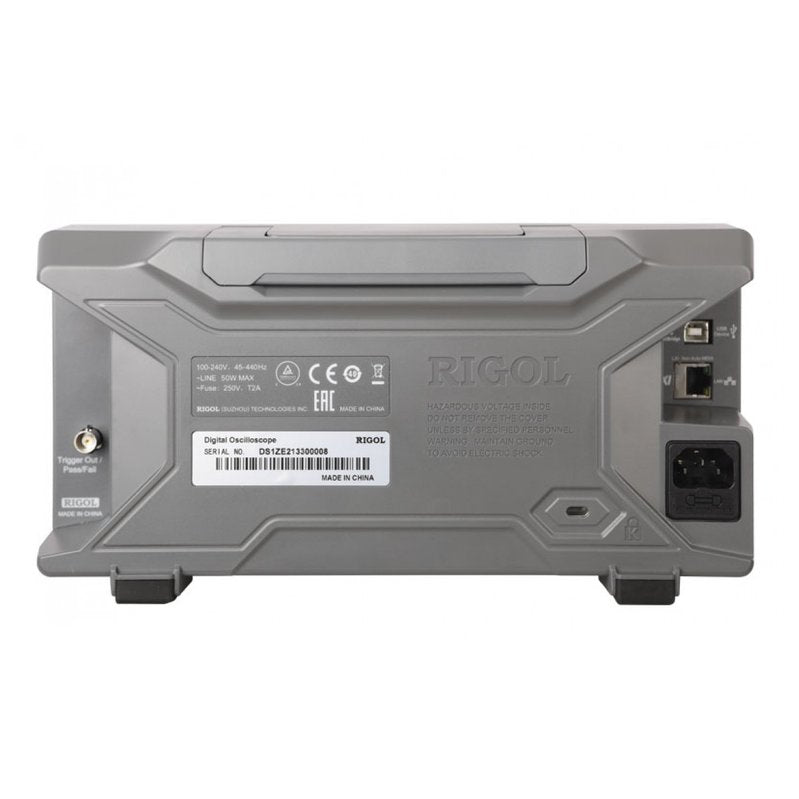

• Various interfaces: USB Host&Device, LAN (LXI), AUX
• Novel and delicate industrial design, easy to use

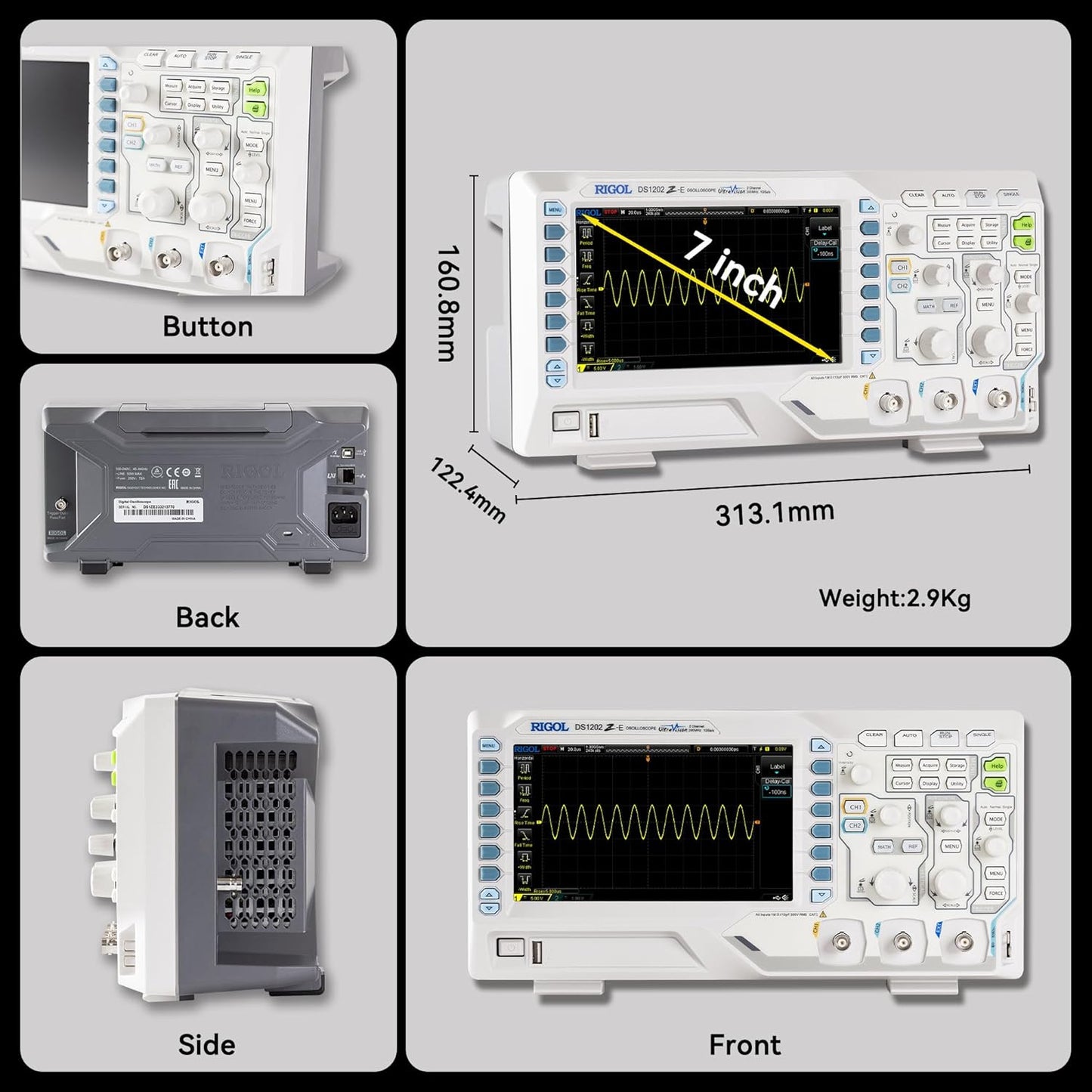

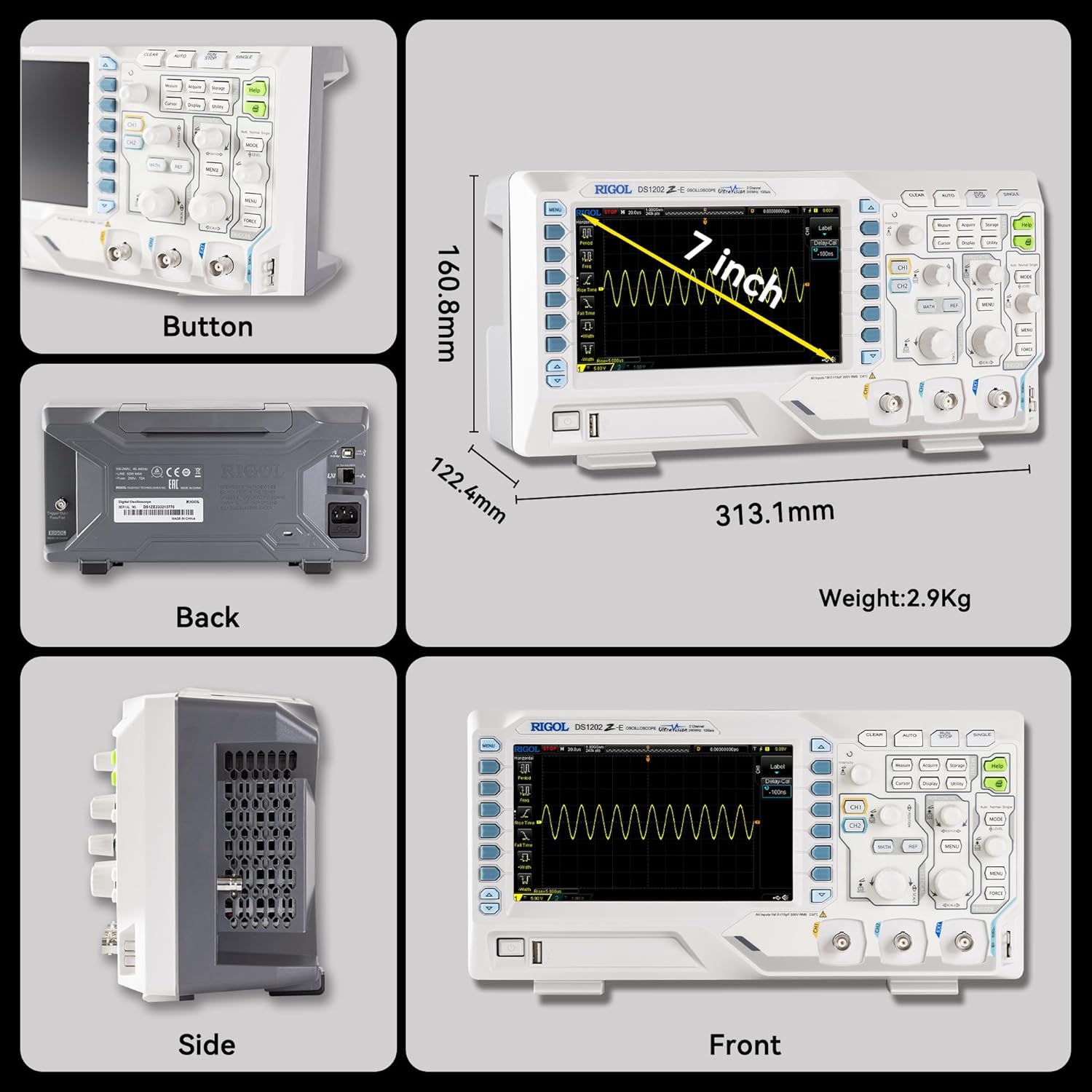

• 7-inch WVGA (800x480) TFT LCD, intensity graded color display
• Service Period: All RIGOL products are guaranteed for 3 years for the main unit and 1 year for the accessories.

Waveform Refresh Rate of 30000 WFMS/S

30000 WFMS/s waveform refresh rate makes it easier to catch occasional abnormal signals.

24m Storage Depth

Standard 24m ultra long storage depth. It allows the user to give full consideration to the overall situation and details of the waveform, maintain the highest sampling rate for a longer period of time, without missing any waveform change.

Hardware Waveform Recording and Playback Function

Provide waveform recording function options, record waveform changes, easily replay waveform, find out the fault location.

Serial Bus Triggering and Decoding

Provide bus triggering and decoding options, support RS232 / UART, I2C, SPI bus.

Digital Fluorescent Display

Multi level gray level display capability, providing similar fluorescent display effect, and the change of waveform can be seen at a fraction of a millisecond
