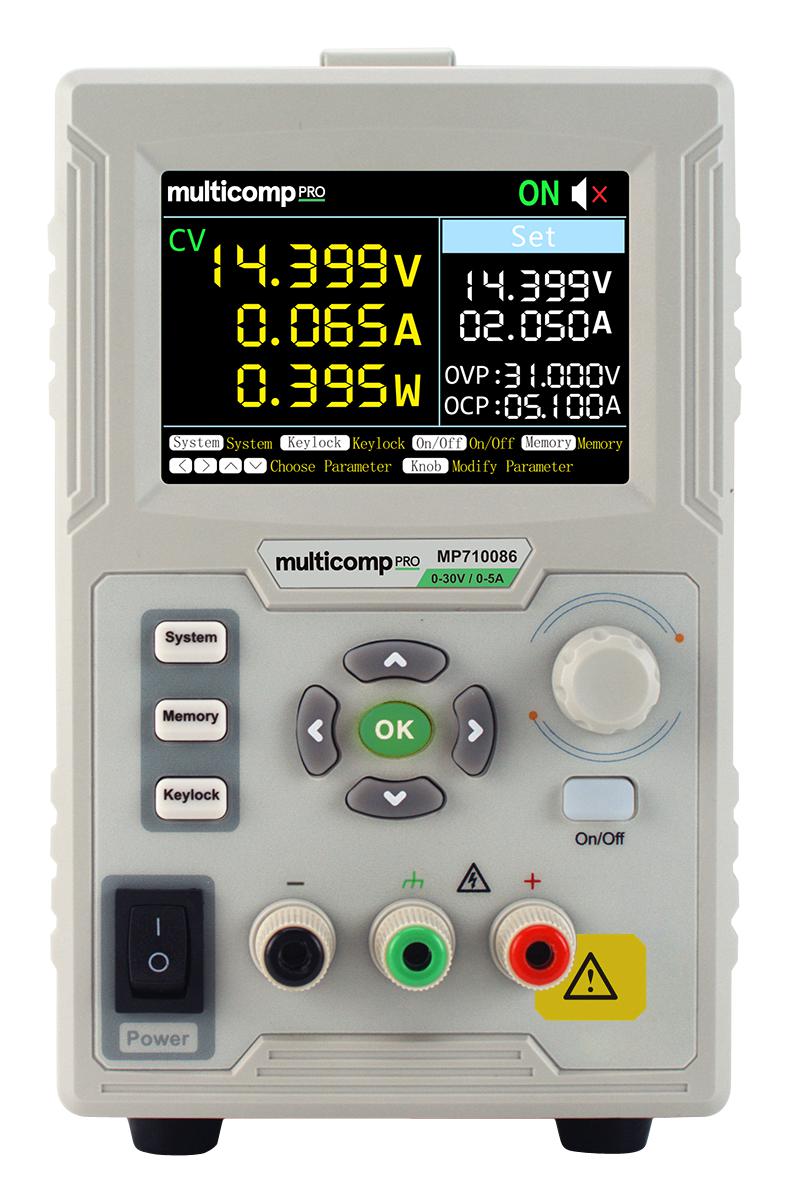

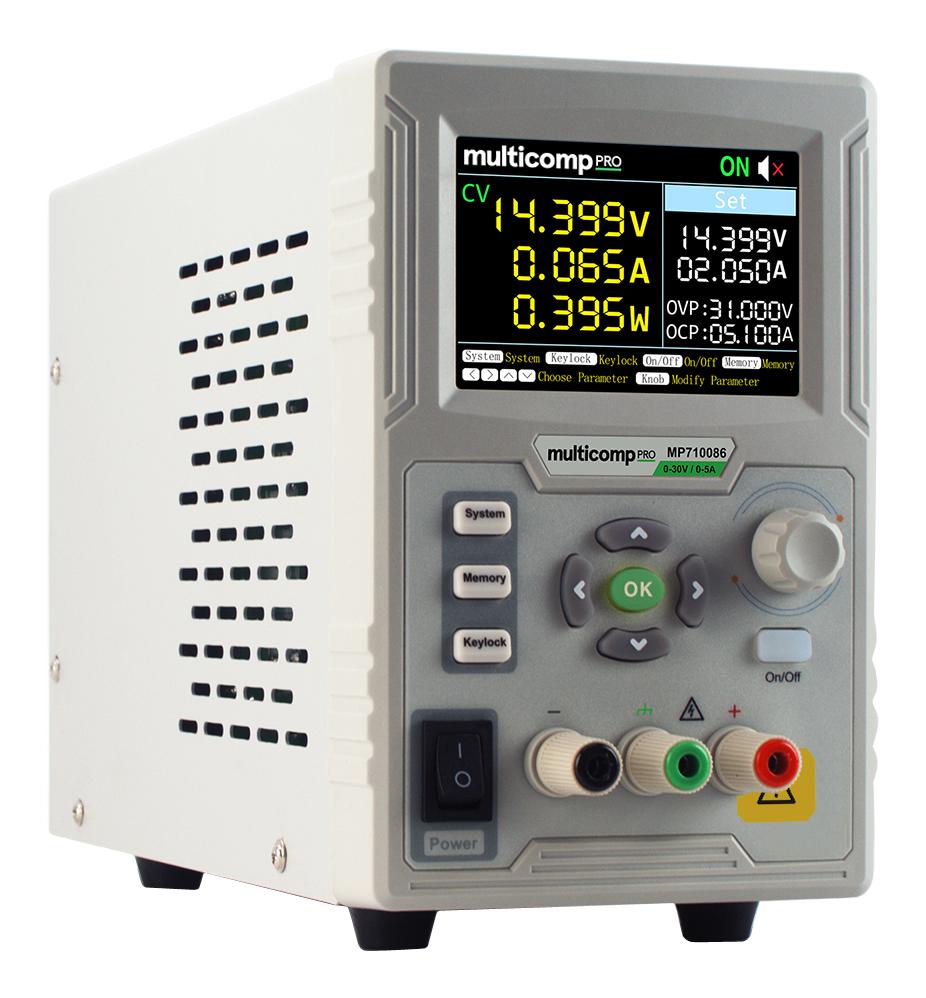

The Multicomp Pro MP710086 is a 150W, single-channel, linear benchtop DC power supply with channel outputs of 0-30V / 0.5A x 1CH.

• 150W maximum output power
• High resolution - 1mV/1mA
• Low ripple/noise
• Over voltage/over current protection
• Multi-directional cooling system with smart fan
• 3.7" TFT LCD display
• Supports RS232 digital communication
• Supports USB connectivity
• Supports SCPI
• 100?s response time
• 5 groups of storage data
• 0-40°C working temperature
• Dimensions (LxHxD) – 117 x 194 x 295mm
• Device weight – approx. 5.6kg
• UK type G and Euro type E / F (Schuko) mains plugs
• Supplied with UK Type G & Euro Type E/F Power Cord

Contents

DC Linear Power Supply, RS232 Cable, Fuse, USB Cable, EU & UK Mains Cords & Operating Instructions
