ELEGOO UNO R3 Super Starter Kit

100% Compatibility with Arduino Software, Sensors, and Codes

ELEGOO is one of the brands on the market whose clone products are 100% compatible with Arduino microcontroller boards; they can use the official software, sensors, and code.

Product Objectives:

Engage with science, technology, engineering, and maths subjects in a fun way;

Hands-on learning, independent exploration, build resilience, flexibility, and Initiative; foster creativity;

Collaboration, communication, and teamwork

Learn the Science of Electronics with ELEGOO

The ELEGOO boards can be used as the brains behind almost any electronics project, which can interact with buttons, LEDs, motors, speakers, GPS units, cameras, the internet, and even your smartphone or your TV! By connecting the board to a personal computer via a USB cable and uploading code to the board, users can create digital devices and interactive objects that can sense and control objects in the physical and digital world, like robots or even honest fortune-telling machines.

For this ELEGOO Super Starter Kit, we provide a 24-lesson tutorial, introducing the basic setup of the software and the working principles of the sensors to enable the UNO board to control the sensors.

It’s a good choice for kids, teens, adults, or anyone obsessed with electronics, programming, or robotics to take their first steps on their electronics journey!

Younger kids should be under the supervision and guidance of adults.

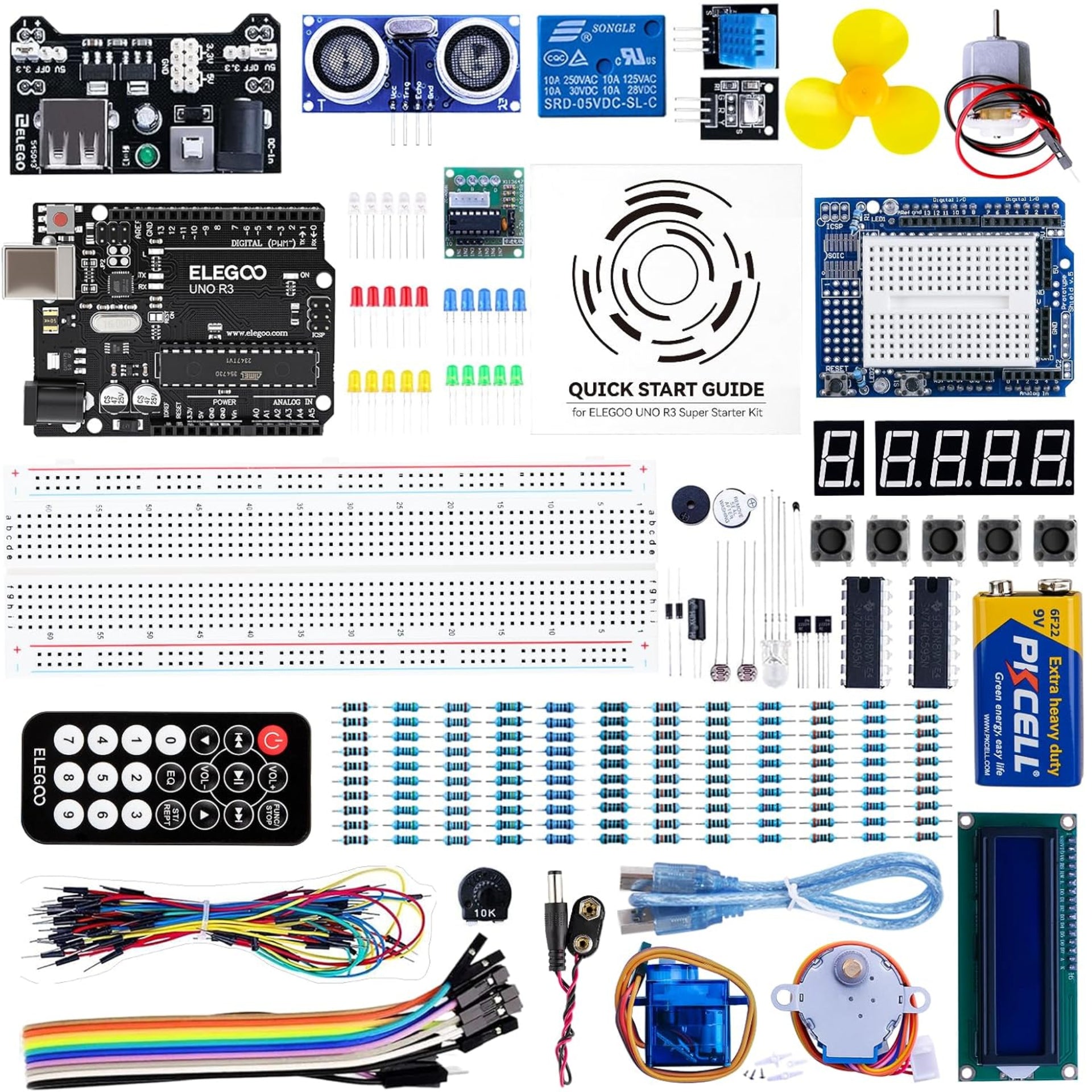

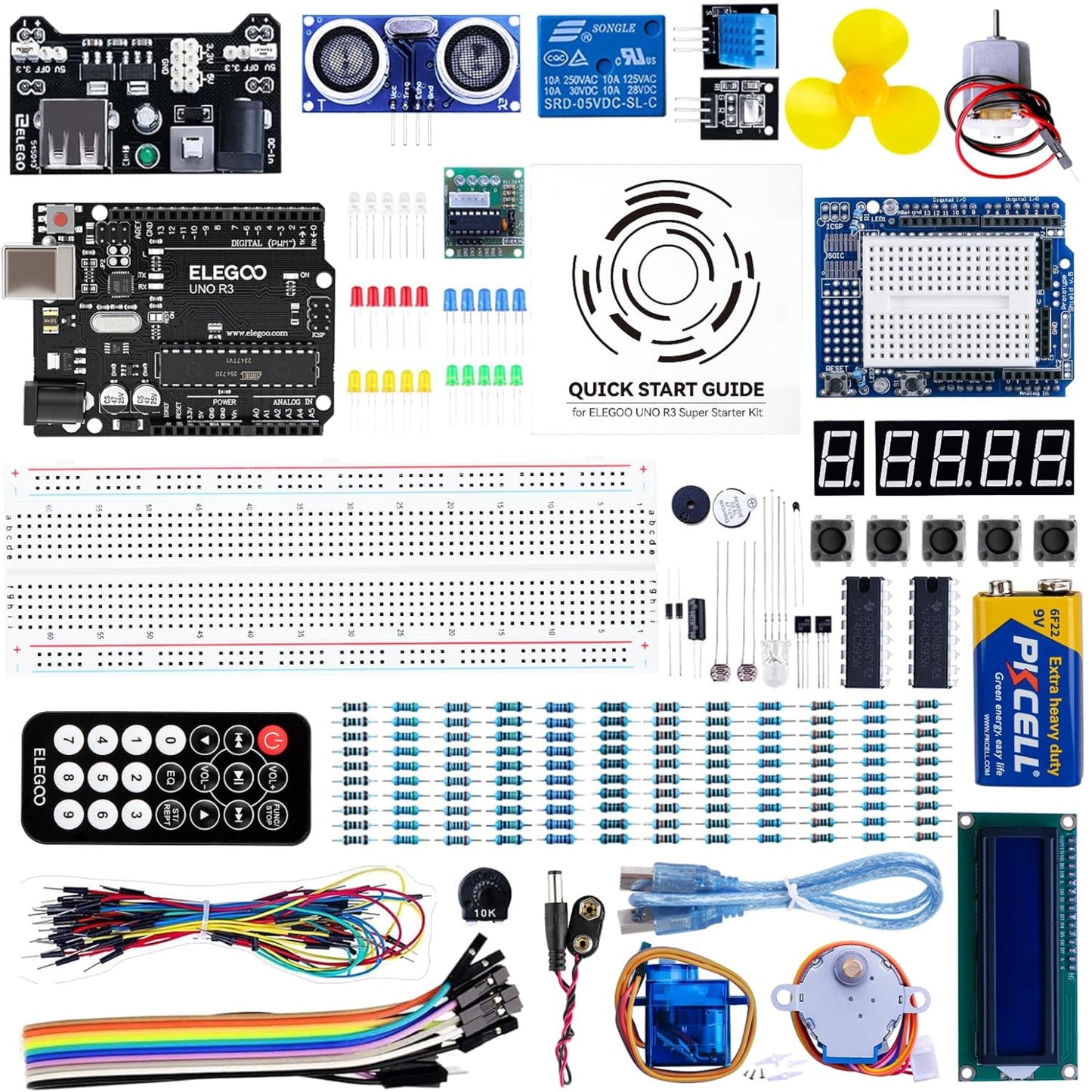

Component included

• 1pcs UNO R3 Controller Board; 1pcs LCD1602 Module ( with pin header); 1pcs Breadboard Expansion Board; 1pcs Power Supply Module WARNING: Pls. do not use a voltage higher than 9V
• 1pcs Joystick Module; 1pcs IR Receiver; 1pcs Servo Motor (SG90); 1pcs Stepper Motor; 1pcs ULN2003 Stepper Motor Driver Board
• 1pcs Ultrasonic Sensor; 1pcs DHT11 Temperature and Humidity Module; 1pcs 9V Battery with DC; 1pcs 65 Jumper Wire
• 1pcs USB Cable; 1pcs Active Buzzer; 1pcs Passive Buzzer; 1pcs Potentiometer; 1pcs 5V Relay
• 1pcs Breadboard; 1pcs Remote; 1pcs Tilt Switch; 5pcs Button (small); 1pcs 1 digit 7-segment Display; 1pcs 4 digit 7-segment Display
• 5pcs Yellow LED; 5pcs Blue LED; 5pcs Green LED; 5pcs Red LED; 1pcs RGB LED
• 2pcs Photoresistor; 1pcs Thermistor; 2pcs Diode Rectifier (1N4007); 2pcs NPN Transistor (PN2222)
• 1pcs IC 74HC595; 120pcs Resistor; 10pcs Female-to-male Dupont Wire

74HC595 and LEDs

74HC595 is a Serial to Parallel Converter which has eight outputs and three inputs that you use to feed data into it one bit at a time.

This chip makes it a little slower to drive the LEDs (you can only change the LEDs about 500,000 times a second instead of 8,000,000 a second), but it's still really fast, way faster than humans can detect, so it's worth it.

74HC595 shift register is a type of chip that holds what can be thought of as eight memory locations, each of which can either be a 1 or a 0. To set each of these values on or off, we feed in the data using the 'Data' and 'Clock' pins of the chip.

4 digit 7 segment display

7-segment displays consist of 7 LEDs, called segments, arranged in the shape of an “8”. Most 7-segment displays actually have 8 segments, with a dot on the right side of the digit that serves as a decimal point.

When using a 4-digit 7-segment display, the common anode or common cathode pin is used to control which digit is displayed. Even though there is only one digit working, the principle of Persistence of Vision enables you to see all numbers displayed because the scanning speed is so fast that you hardly notice the intervals.

By building the circuit, users can make a simple display showing certain numbers or, more complexly, a count-up timer or an electronic rolling dice.

Stepper Motor

Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called "phases". By energizing each phase in sequence, the motor will rotate one step at a time. With computer-controlled stepping, you can achieve very precise positioning and/or speed control. For this reason, stepper motors are the motor of choice for many precision motion control applications.

..................FAQ..................

Q1: What is the product for?

A1: What you are browsing is our Electronic Starter Kit.

Our learning kits are mainly used to learn and practice the basics of electronics, programming, and embedded systems. It can be used to create a variety of projects such as automation control, sensor data acquisition, robotics, lighting and sound effects, etc. Through hands-on experiments, users can master how to combine hardware and software to develop innovative electronic projects.

Our Starter Kits contain control boards and possible accessories. There are three stages: basic, super, and ultimate according to different user needs. The starter kits with more parts can be used to complete more complex and large experimental projects.

You can get more information about other ELEGOO starter kits in the comparison column below.

Q2: Where can I download the tutorial file?

A2: There is a quick guide in the kit, you can also download the tutorial from our official website or ELEGOO wiki.

NOTE: Lessons 1, 2, and 3 do not have example codes. They will only show you how to install, add libraries, and upload code to the board. The tutorial file is the PDF named after the product.

Q3: What is the difference between ELEGOO UNO Super starter kit and ELEGOO UNO most complete starter Kit?

A3: The main difference is the number of sensors/modules.

The UNO Ultimate Kit has the following more sensors compared to the UNO super kit:

22 pF Ceramic Capacitor, 104 pF Ceramic Capacitor, 10 µF Electrolytic Capacitor, 100 µF Electrolytic Capacitor, S8050 NPN Transistor, Rotary Encoder Module, RC522 RFID Module, Keypad Module, DS1307 real-time clock module, Water Level Sensor, Sound Sensor, HC-SR501 PIR Motion Sensor, GY-521 Module, 9V 1A Power Supply, MAX7219 Module.
