Product features:

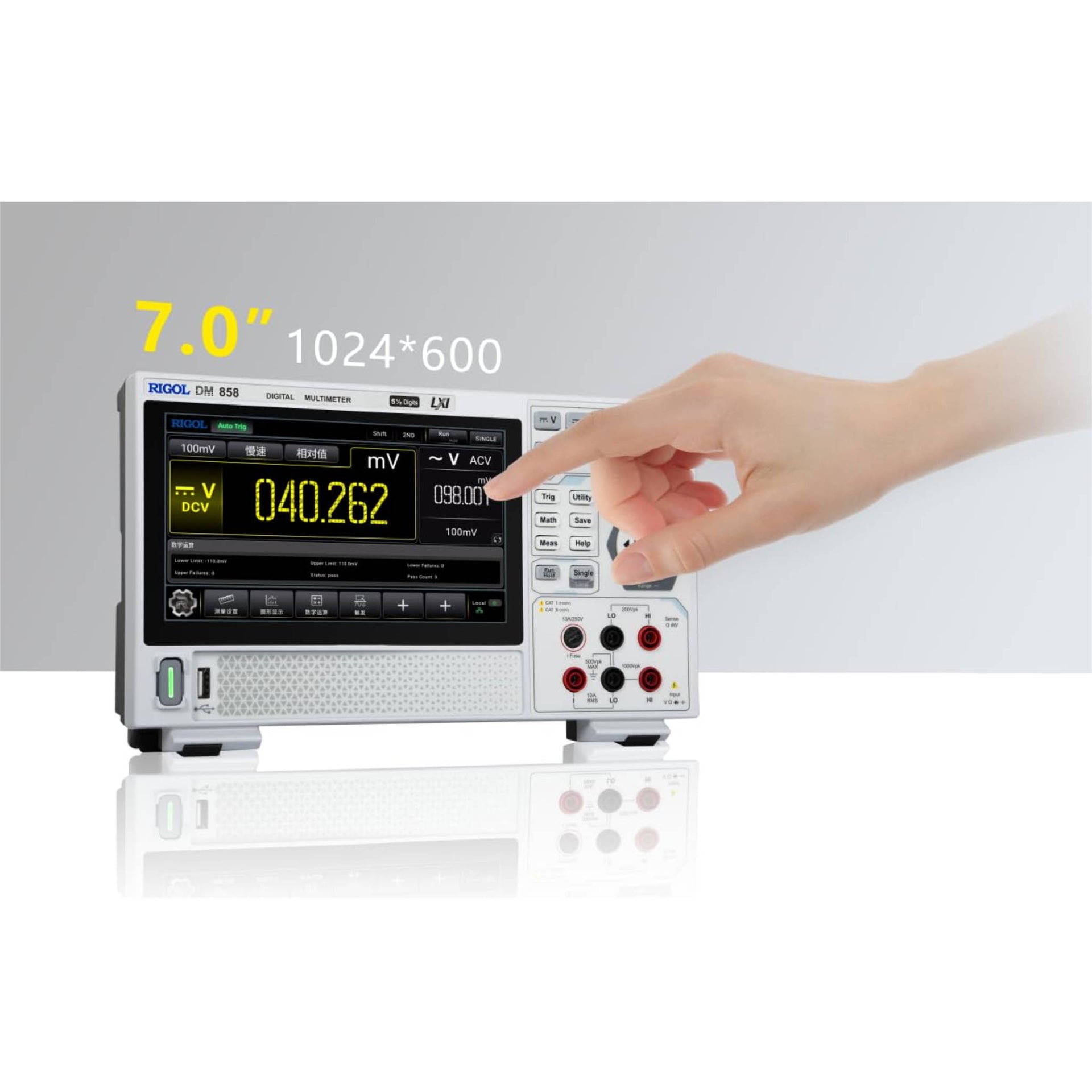

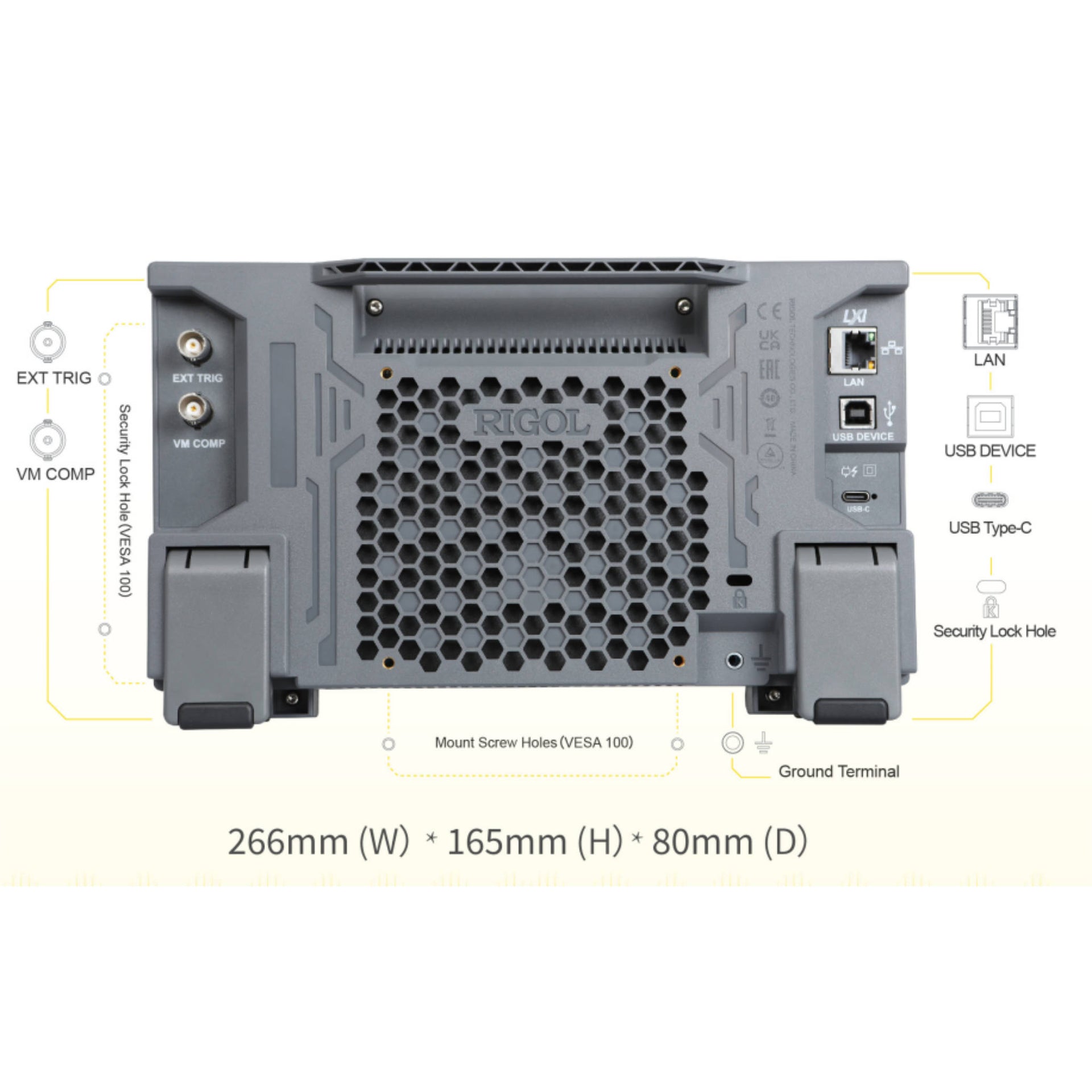

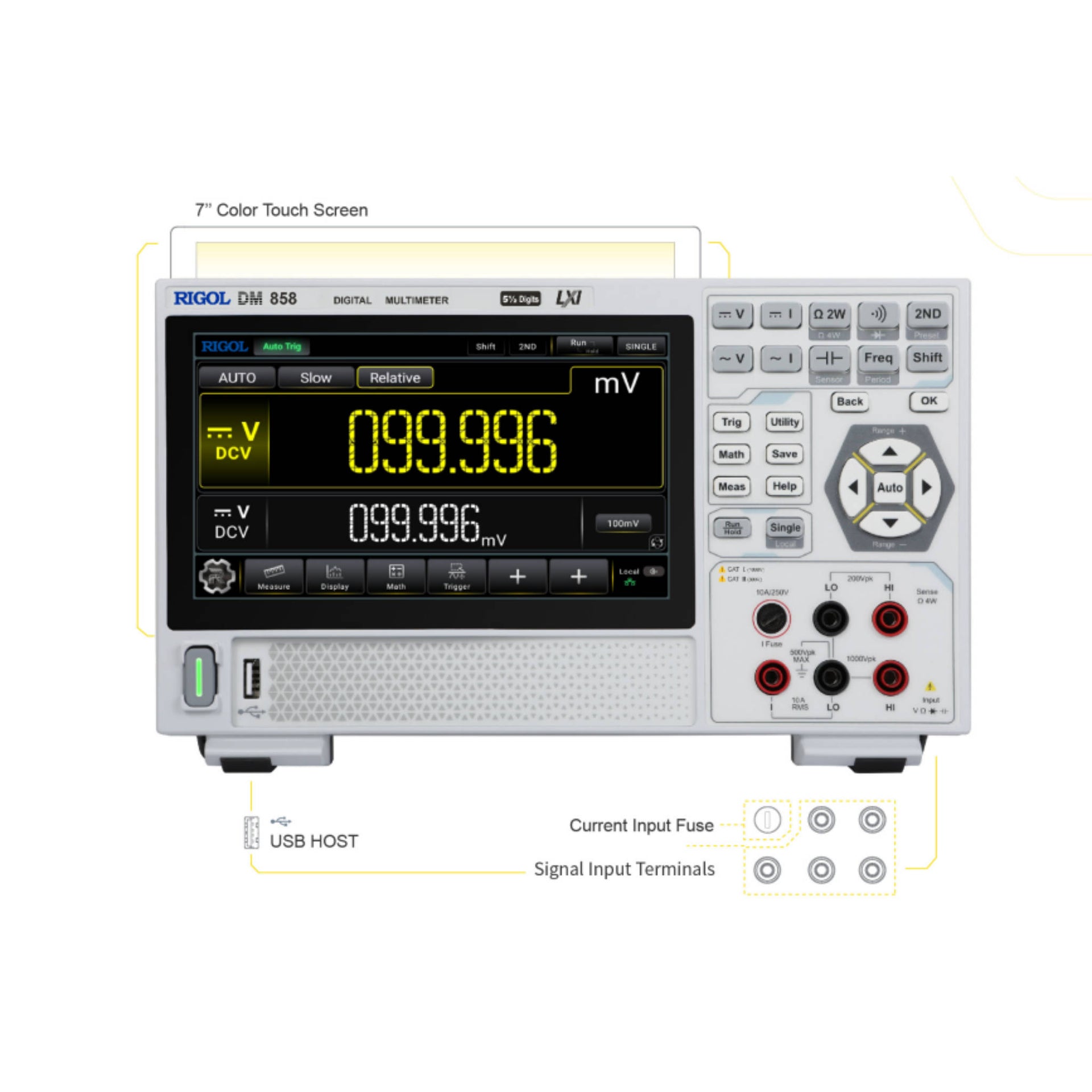

5½ bit read resolution, reading rate up to 125 readings/second, up to 500,000 points, logging memory for recording and analyzing other data, real RMS AC voltage and AC current measurement, integrated data storage for 10 groups, storage of 10 group settings, powerful mathematical algorithm. Support a Wide range of application analyses. 7 inch colour touch screen with two measured value displays. Type-C interface power supply, compact and ultra-flat, saves space on the workbench. Standard USB and LAN interfaces, support for web control.

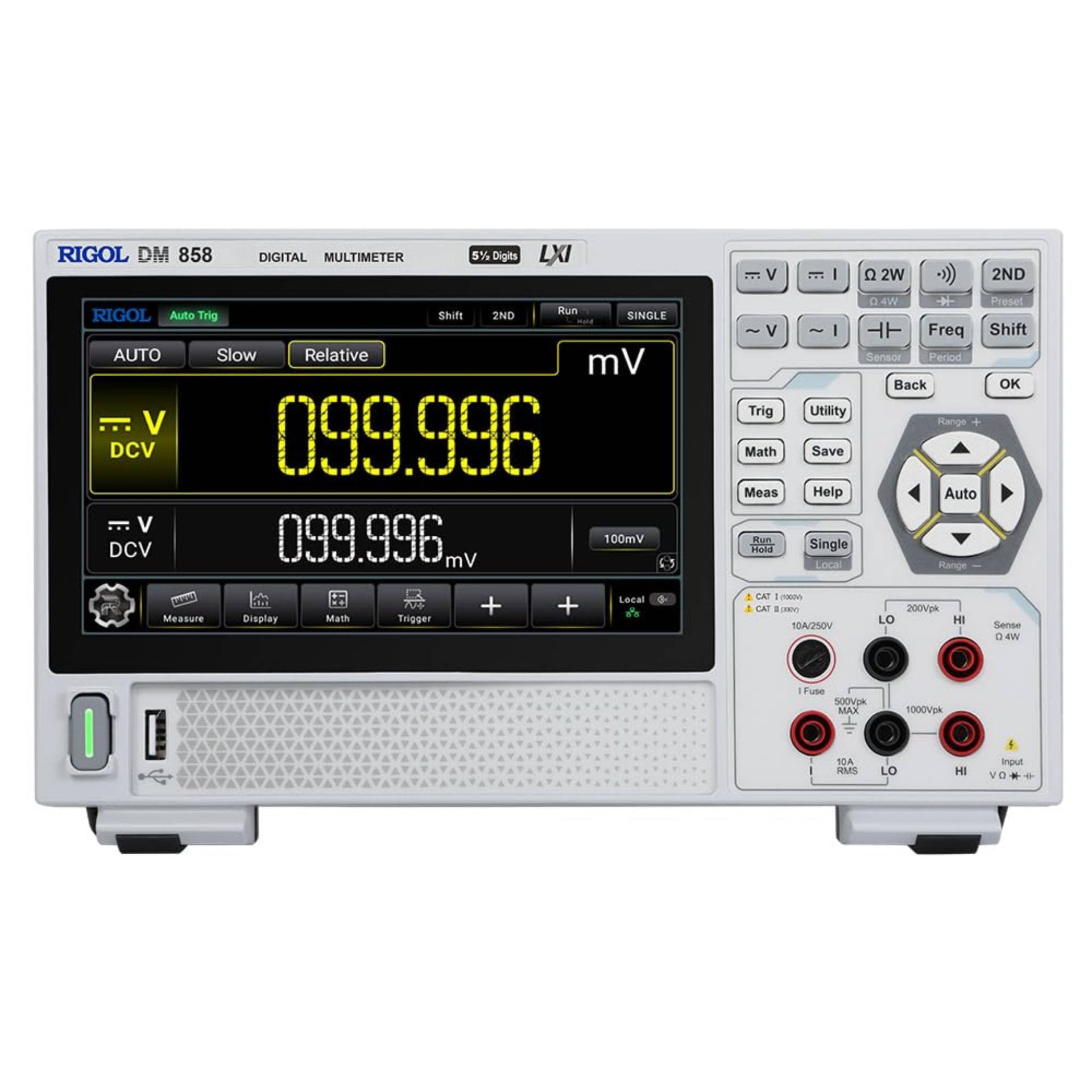

5.5 digit display

Take fast measurements with a resolution of 5.5 bits and a measurement rate of up to 125 readings per second. 500,000 point recording memory allows you to record and analyze more test data.

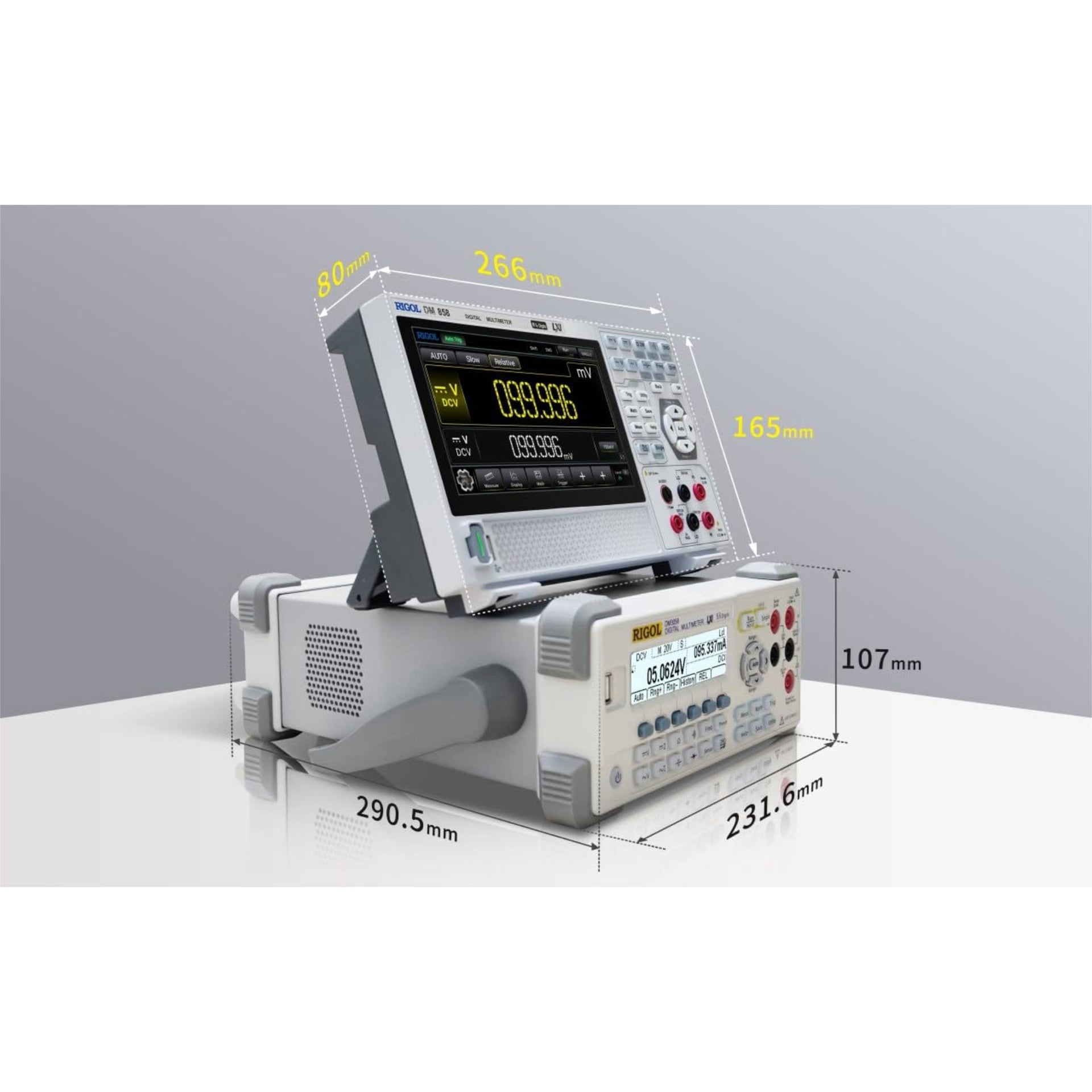

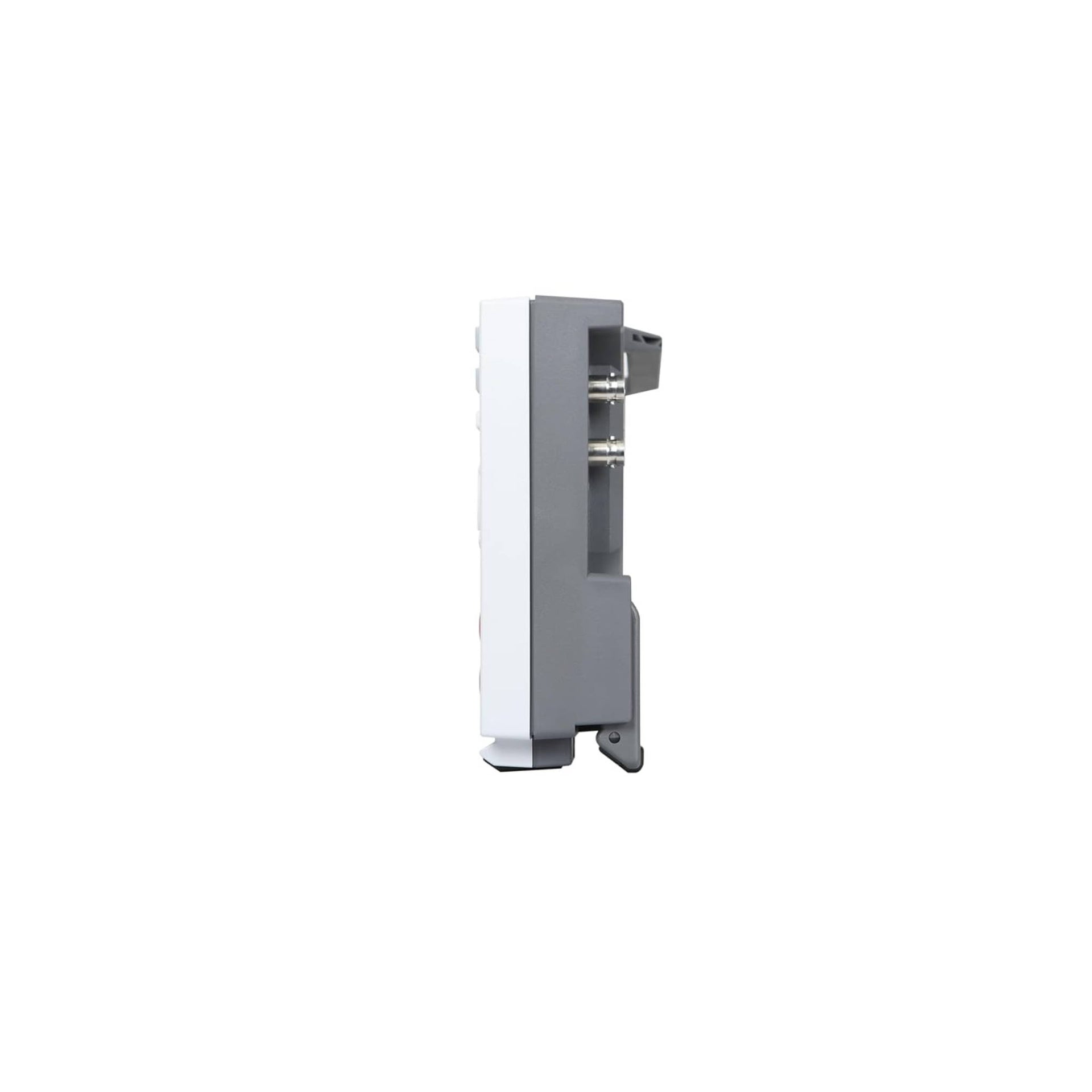

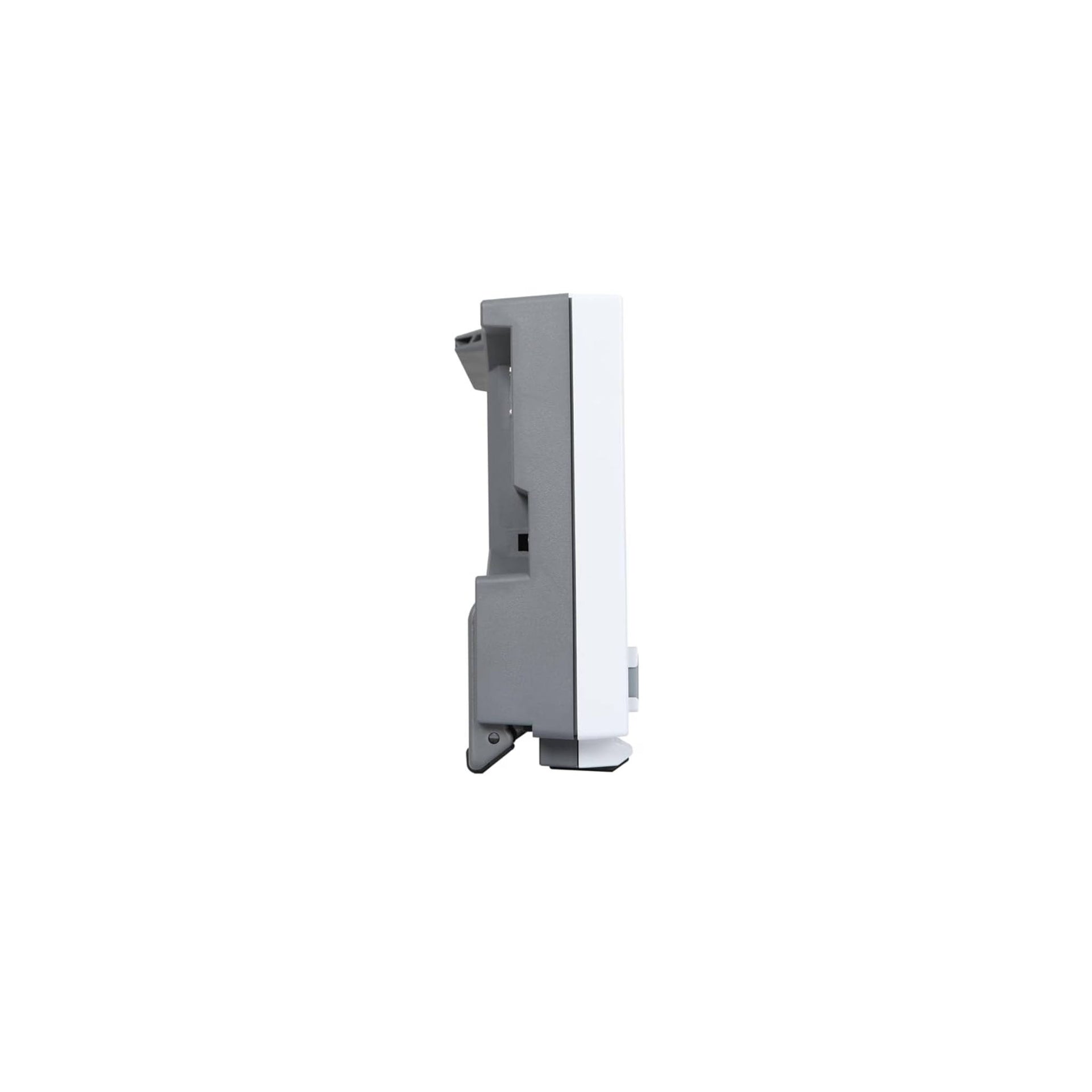

Thinner and lighter body

Compared to the previous DM3058, the DM858 has a slimmer chassis and a wider field of view with a depth of only 80 mm, making it a space-saving digital tabletop multimeter.

Support Type-C power supply

Type-C power supply interface, support for mobile power supply, 65W, 74Wh rechargeable power supply, battery life of up to 8h, easy to cope with the field test.

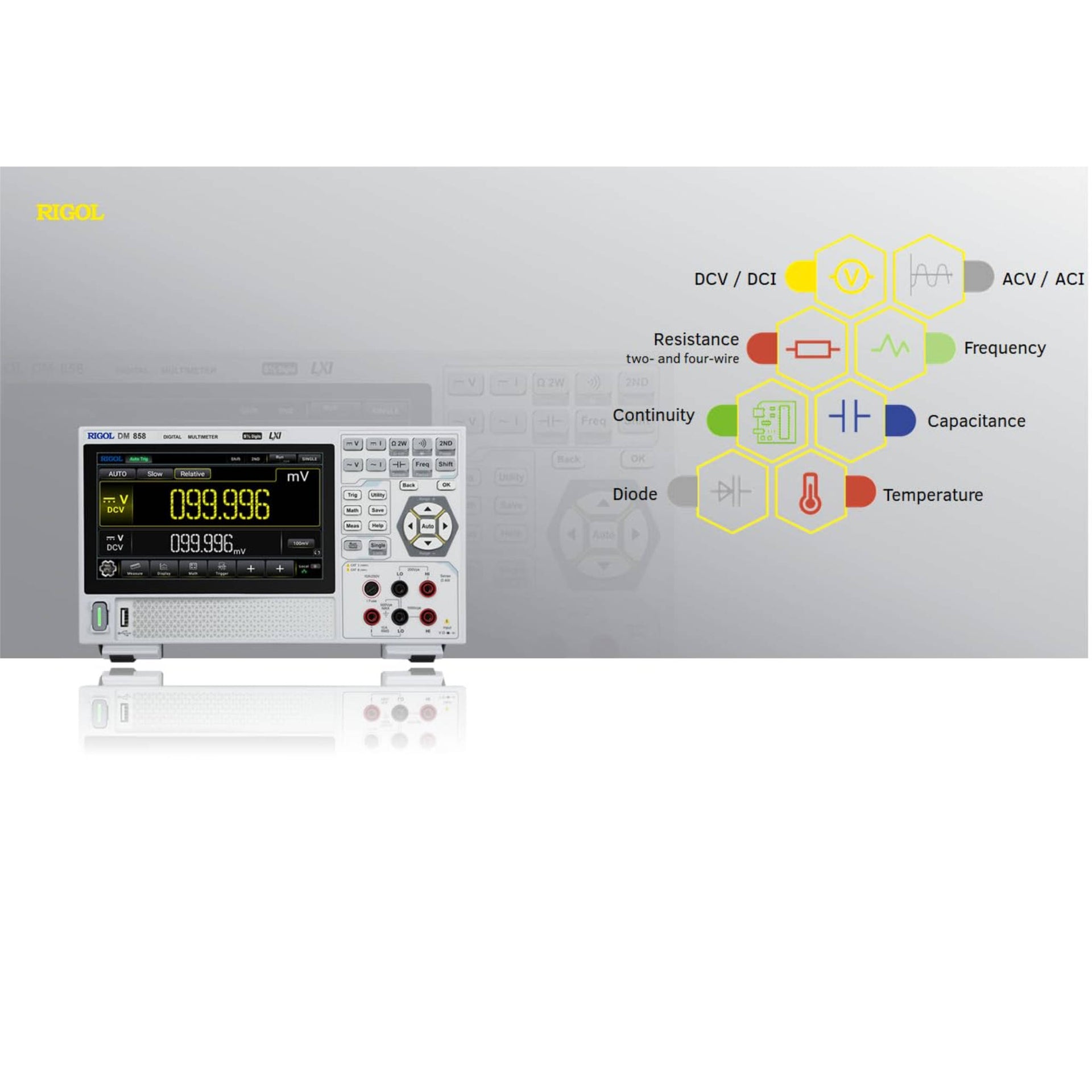

11 input signal measurements

DCV, DCI, ACV, ACI, 2-wire and 4-wire resistance, frequency and period, continuity, diode, temperature, capacitance output signals for more testing possibilities.

Graphical display and math functions

Supports trend graphics, histogram, bar chart 3 types of graphic displays, at the same time to provide statistical operations, limit value operations, dB/dBm, relative operations of a variety of mathematical operations.

Also available as the DM858E economy version, here.
